AHN42F parallelled back-flow safety valve

Product Category：SAFETY VALVE
Product Name：AHN42F parallelled back-flow safety valve
Product Tag：parallel safety return valve
Update Date：2021/9/1 10:11:34
Visits：

Note: Our Products Can Be Customized According To Customers' Needs. In Addition To National Standards,We Can Design And Manufacture According To American Standards, Japanese Standards, German Standards, Russian Standards, British Standards And So On.

The AHN42F parallelled back-flow safety valve is suitable for the liquid phase return pipeline at the outlet of the liquefied petroleum gas tank pump. When the pressure in front of the pump exceeds the specified value, the valve opens automatically and plays a role of safe return to ensure the safe operation of equipment and pipelines.

AHN42F parallel safety return valve

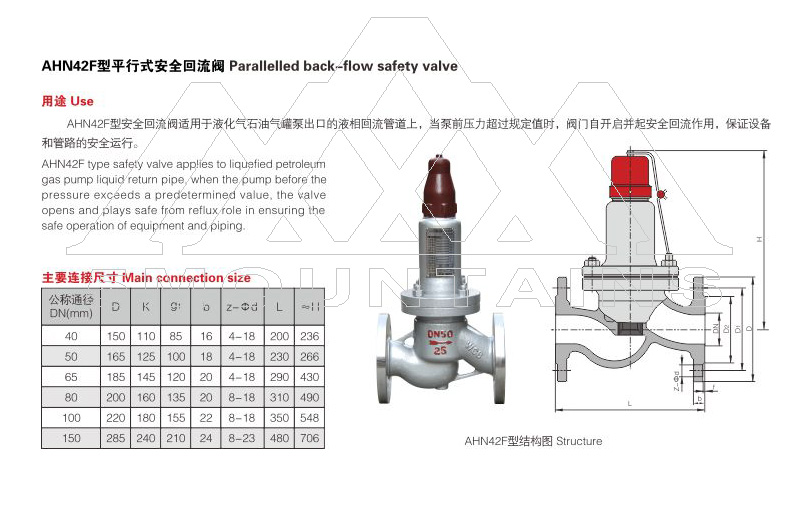

AHN42F parallel safety return valve outline and connection dimensions

Nominal diameter DN(mm)	Dimension (mm)
Nominal diameter DN(mm)	D	D1	D2	b	Z- d	L	H
25	115	85	65	16	4-14	160	325
32	140	100	78	16	4-18	180	335
40	150	110	85	16	4-18	200	340
50	165	125	100	16	4-18	230	355
65	185	145	120	20	4-18	290	460
80	200	160	135	20	8-18	310	500
100	215	180	155	twenty two	8-18	350	580
150	280	240	210	twenty four	8-23	480	750
